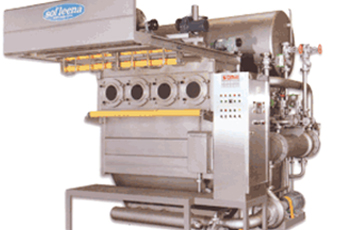

SOFLEENA SIDS
(WEIGHT REDUCTION MACHINE) |
 |
|
 |
|
Features
• Overall processes including indirect cooling, moisture separation and humidifying are optimized and automatically operated by a program.
• Indirect cooling used to reuse collected coolant.
• High durability of each system enables easier maintenance.
• Drying cone, beam, loose, top, tow type dyed cottons T/C, PET, wool and acetate. |
|
|
| |
  |
|
| Model |
SIDS 200 |
SIDS 400 |
SIDS 600 |
| Loading Capacity (kg) |
150~200 |
300~400 |
500~600 |
| Liquid (Liters) |
1,200 |
2,400 |
3,500 |
| Electric Power (kW) |
10(14) |
19(26) |
23(26) |
| Installed width (mm) |
2,000 |
3,100 |
3,100 |
| Length (mm) |
5,300 |
5,300 |
5,900 |
| Height (mm) |
3,700 |
3,700 |
3,700 |
| Max. operating temperature |
98℃ |
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 15min (from20℃ to110℃) |
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 20min (fom110℃ to 80℃) |
|
|
|
| |
 |
 |
|
