Normal pressure

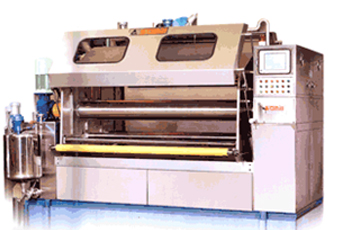

JIGGER DYEING MACHINE SIDJ |
 |
|
 |
|
Features
• Drivers method and vector invertor control enables driving of fabrics under configured speed and tension according to pre-configured program values to achieve high repeatability.
• Low tension operation minimizes wrinkles, slant twists and unlevel dyeing.
• Normal temperature dyeing done at a low liquid ratio to protect the environment.
• Dyeing process of various fabrics including spandex, polyester, nylon, acrylic and T/C |
|
|
| |
  |
|
| Model |
SIDJ 900 |
SIDJ 1100 |
| Loading Capacity (mm) |
2,000 |
2,000 |
| Liquid (mm) |
1,100 |
1,100 |
| Electric Power (kW) |
13 |
13 |

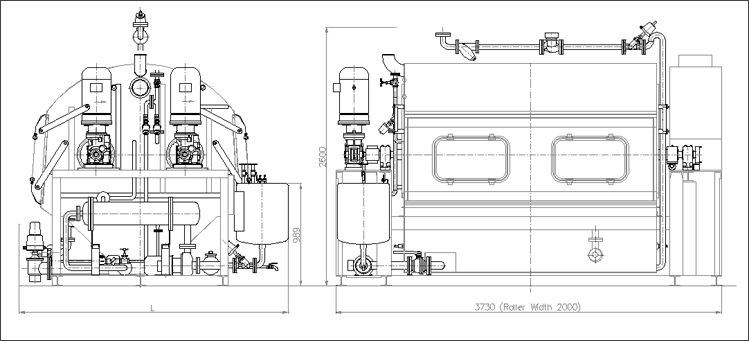

| Installed width (mm) |
3,730 |
3,730 |
| Length (mm) |
2,400 |
2,400 |
| Height (mm) |
2,600 |
2,600 |
| Max. operating temperature |
98℃ |
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to 98℃) |
|
|
| |
 |
 |
|
