Normal Pressure

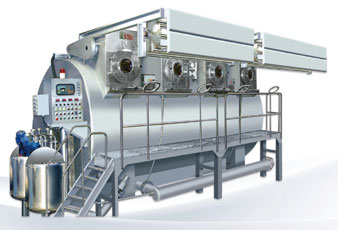

JET FLOW DYEING MACHINE SIDC 300 |
 |
|
 |
|
Features
• Pre-processing and dyeing of natural fibers
• Pre-processing and dyeing of cottons, T/R, nylon, Lycra, acrylic and wool
• Water, steam and chemicals used are reduced by low liquid operations.
• Liquid Ratio ; 1:3~6
• Dual injection nozzle of the twin soft nozzle enables higher Dyeing affinity and leveling property colour. Constant speed of the low pressure nozzle enhances quality by prevention of pilling and wrinkles. |
|
|
| |
  |
|
| Model |
DC 301 |
DC 302 |
DC 303 |
DC 304 |
| Loading Capacity (kg) |
200~250 |
400~500 |
600~750 |
800~1,000 |
| Liquid Quantity (liters) |
750~1,500 |
1,500~3,000 |
2,250~4,500 |
3,000~6,000 |
| Electric Power (kW) |
13.3 |
21.5 |
30 |
38.7 |

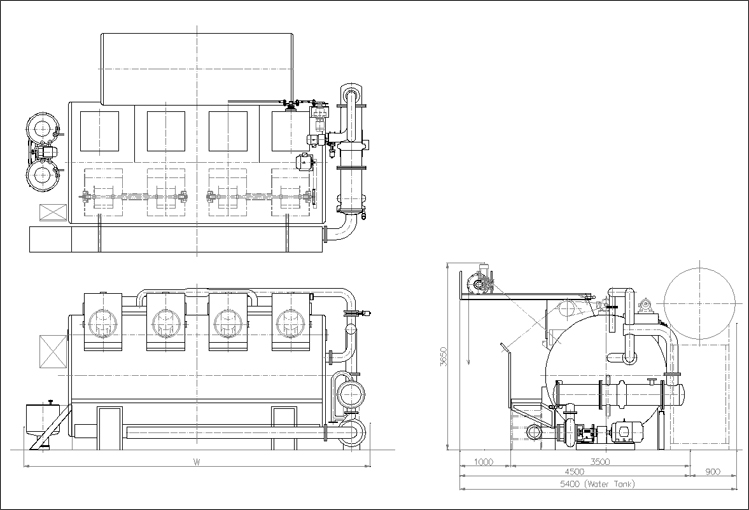

| Installed width (mm) |
2,750 |
4,000 |
5,250 |
6,550 |
| Length (mm) |
4,500 |
4,500 |
4,500 |
4,500 |
| Height (mm) |
3,650 |
3,650 |
3,650 |
3,650 |
| Max. operating temperature |
140℃ |
|
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
|
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
|
|
| |
 |
 |
|
