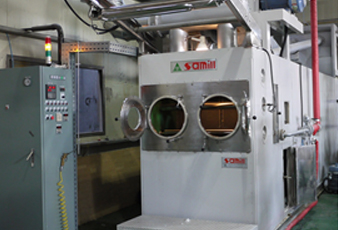

AIRLEX SIRA

AIRLEX SIRA
(AIR RELAXER)


Features

• This device is a normal pressure relax processing device where scoured PET fabrics go through high temperature relax processing by a lot of continuous impacts caused by the high speed air flow.

• Tumbler process and drying of cottons are done in this device.

• Lowest Door : Lower working door enables easier operations.

• Relax and crepe processing of polyester, cottons and T/C


Model SIRA 200
Loading Capacity (kg) 200
Electric Power (kW) 42.5

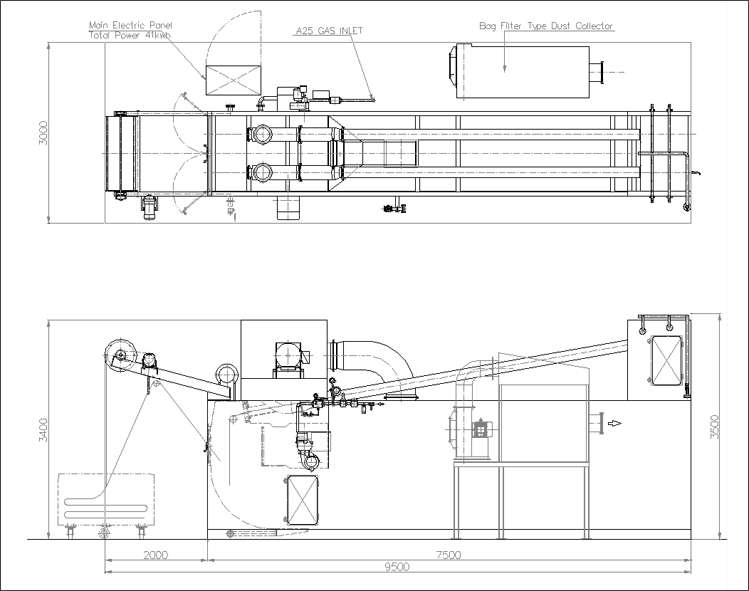

Installed width (mm) 3,000
Length (mm) 9,500
Heigth (mm) 3,500
Max. operating temperature 120℃
Heating rate (LNG) Approx. 20min (from20℃ to120℃)
Cooling rate (Cooling Water 0.1㎫, 15℃) Approx. 20min (fom120℃ to 80℃)
