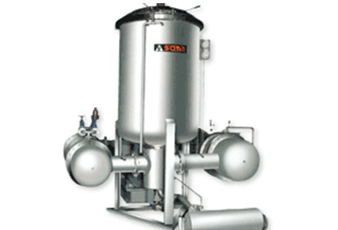

YARN DRYER SIHY |
 |
|
 |
|
Features
• Overall processes including indirect cooling, moisture separation and humidifying are optimized and automatically operated by a program.
• Indirect cooling used to reuse collected coolant.
• High durability of each system enables easier maintenance.
• Drying cone, beam, loose, top, tow type dyed cottons T/C, PET, wool and acetate. |
|
|
| |
  |
|
| Model |
SIHY 100 |
SIHY 200 |
SIHY 400 |
| Loading Capacity (kg) |
100 |
200 |
400 |
| Electric Power (kW) |
45 |
90 |
190 |
| Installed width (mm) |
3,000 |
3,500 |
4,300 |
| Length (mm) |
4,300 |
4,600 |
5,200 |
| Height (mm) |
6,000 |
6,000 |
6,000 |
| Max. operating temperature |
130℃ |
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 15min (from20℃ to130℃) |
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 20min (fom130℃ to 80℃) |
|
|
|
| |
 |
 |
|
