JET FLOW DYEING MACHINE SIDA 7000 |
 |
|
|
|
Features
• This machine is driven by soft and fast air floating. Due to high speed operation and powerful air flow, there is no wrinkle produced on the fabric. With its excellent relaxer effects, good quality may be achieved.
• Water, steam and chemicals used are reduced by low liquid operations.
• Applicable for numerous fibers including cottons, chemical fibers, T/C, union fibers, woven fabric made of new synthetic fibers, spandex and knits. |
|
|
| |
  |
|
| Model |
DA 7100 |
DA 7200 |
DA 7300 |
| Loading Capacity (kg) |
200~250 |
400~500 |
600~750 |
| Liquid Quantity (liters) |
750~1,250 |
1,500~2,500 |
2,250~3,750 |
| Electric Power (kW) |
45 |
52 |
70 |

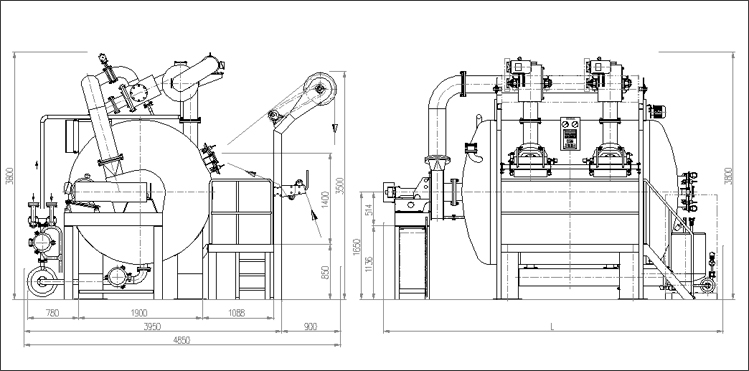

| Installed width (mm) |
4,150 |
5,350 |
6,600 |
| Length (mm) |
4,615 |
4,615 |
4,615 |
| Height (mm) |
3,800 |
3,800 |
3,800 |
| Max. operating temperature |
140℃ |
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
|
| |
 |
 |
|
