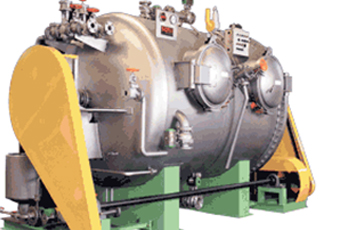

HIGH PRESSURE ROTARY WASHER SIRW

HIGH PRESSURE ROTARY WASHER SIRW


Features

• Rotation of the rotor drum in special structure under high temperature and high pressure enables a lot of impacts for effective relax and crepe processes.

• Extensive process from thin to thick fabric.

• Simple structure minimizes disorders. Fabric inserting gate and discharging gate are distinguished. Large caliber of this device enables easier operations.

• Relax and crepe processing of polyester high-twist fabrics.


Model SIRW 200 SIRW 400
Loading Capacity (kg) 200 400
Liquid (liter) 1,800~2,200 4,500~5,500
Electric Power (kW) 7.5 15
Installed width (mm) 5,000 5,100
Length (mm) 2,000 2,900
Height (mm) 2,500 3,400
Max. operating temperature 140℃
Heating rate (Saturate Steam 0.7㎫) Approx. 20min (from20℃ to 110℃)
Cooling rate (Cooling Water 0.1㎫, 15℃) Approx. 30min (from110℃ to 80℃)
