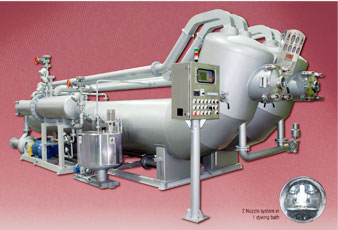

JET FLOW DYEING MACHINE SIDC 600

JET FLOW DYEING MACHINE SIDC 600


Features

It is possible to dye fabrics ranging from light weight to heavy weight.

• As a variety dyeing machine for woven and kinds of knitted fabric it useful to requirement low tension, no rubbing, low wrinkle items because of its more stabilizing dyes solution with fabric flow

• Because the fabric and solutions and going to smoothly upward direction it is suitable for delicate fabrics for dyed.

• Operation by low tension and smoothly transportation is available to no water-rubbing with low wrinkle defect.

• As filter size is improved, the circulation of dyeing solution is easy.

• It's durability is improved by use to new technology "U" tube type heat exchanger.

• Easy to adjust the speed of the reelless structure.

• Low liguor ratio(1:6~8)
Useful items : All kinds of knit fabric, spandex, polyester, cotton, blackout drape, relaxer for scouring and dyeing process.



Model DC 601 DC 602 DC 604
Max. operating Pressure (kg) 400 800 1600
Max. Temperature (Mpa : kg/㎠G) 0.49(5)
Max.Loading Capacity () 140
Kind of :iquid (m/min) 100~400
Electric Power 2 4 8
Electric Power (KW/hr) 25.4 49.1 80.6

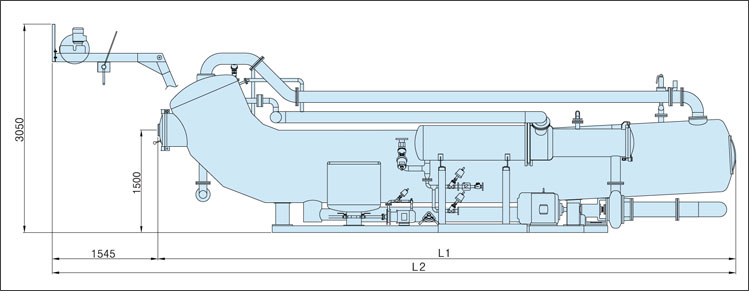

Dimension Width (mm) 2,200 3,450 6,100
Dimension L1(mm) 8,455
Dimension L2(mm) 10,000
