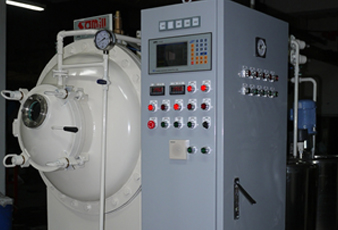

DRUM DYEING MACHINE SIDG
(GARMENT DYEING MACHINE) |
 |
|
 |
|
Features
• Through combination of stabilized jet nozzles and free-reelsⓡ using cam clutches, low tension and high speed operation is possible. Which then results lesser spots, slanted wrinkles and twists. It also aids the material to relax.
• Garment dyeing machine supplies the least amount a customer needs quickly enough to minimize inventory stocks and to protect the environment.
• Water, steam and chemicals used are reduced by low liquid operations.
• Liquid Ratio ; 1:~5
• Sample dyeing of cottons, synthetic fibers, high density fibers, clothes and fabrics. |
|
|
| |
  |
|
| Model |
SIDG 5 |
SIDG 50 |
SIDG 100 |
| Loading Capacity (kg) |
5 |
50 |
100 |
| Liquid (liters) |
05 |
150 |
300 |
| Electric Power (kW) |
2.5 |
6 |
12 |
| Installed width (mm) |
1,600 |
2,300 |
2,500 |
| Length (mm) |
2,000 |
2,800 |
3,300 |
| Height (mm) |
2,200 |
2,400 |
2,400 |
| Max. operating temperature |
140℃ |
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
|
| |
 |
 |
|
