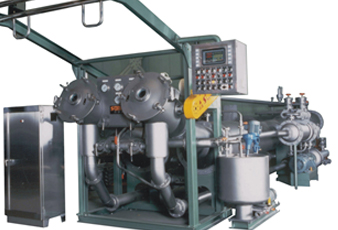

JET FLOW DYEING MACHINE SIDC 8000 |
|
|
 |
|
Features
• Stabilized dyeing or relaxer by high speed circulation of medium thick fabric
• Water, steam and chemicals used are reduced by low liquid operations.
• Liquid Ratio ; 1:5~8
• Lower working door enables easier operations.
• Numerous processes including dyeing, relaxer, weight reduction and anti-flaming processing for various clothing fibers such as new synthetic fibers and medium thick, industry fibers, spandex and knits. |
|
|
| |
  |
|
| Model |
DC 8100 |
DC 8200 |
DC 8300 |
| Loading Capacity (kg) |
100~200 |
200~400 |
300~600 |
| Liquid Quantity (liters) |
1,000~1,400 |
2,000~2,800 |
3,000~4,200 |
| Electric Power (kW) |
19.5 |
36.4 |
53.6 |
| Installed width (mm) |
2,000 |
3,000 |
4,000 |
| Length (mm) |
10,700 |
10,700 |
10,700 |
| Height (mm) |
1,600(3,000) |
1,600(3,000) |
1,600(3,000) |
| Max. operating temperature |
140℃ |
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
|
| |
 |
 |
|
