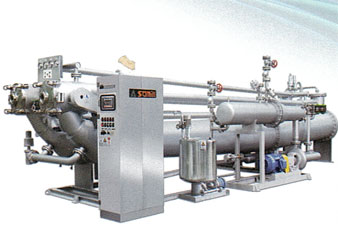

JET FLOW DYEING MACHINE SIDC 20/200

JET FLOW DYEING MACHINE SIDC 20/200


Features

• As a variety dyeing machine for woven and kinds of knitted fabric it useful to requirement low tension, no rubbing, low wrinkle items because of its more stabilizing dyes solution with fabric flow.

• Because the fabric and solutions are going to smoothly upward direction it is suitable for delicate fabrics for dyed.

• Operation by low tension and smoothly transportation is available to no water-rubbing with low wrinkle defect.

• As filter size is improved, the circulation of dyeing solution is easy.

• Its durability is improved by use to new technology "U" tube type heat exchanger.

• Possibility to high weight fabric dyeing.

▶ Useful items : All kinds of knit fabric lycra, wool, spandex, cotton, blackout drape, relaxer for scouring and dyeing process.


Model DC 21 DC 22 DC 23
Max. Operating Pressure (Mqa) 0.5(5)
Max. Temperature() 140
Max. Loading Capacity (kg) 150~200 300~400 450~600
Kind of Liquid (Lit.) 800~1,200 1,600~2,400 1,800~3,600
Electric Power (KW/hr) 18.2 33.2 49.5

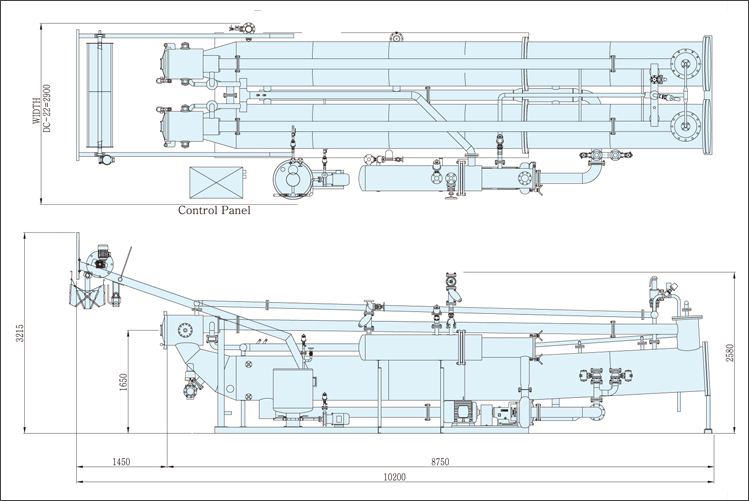

Dimension Width (mm) 1,900 2,900 3,900
Dimension Length (mm) 10,200
Dimension Height (mm) 3,215
