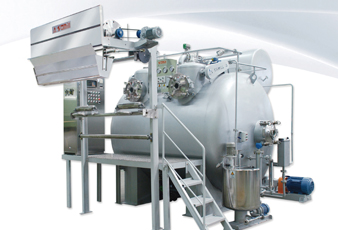

JET FLOW DYEING MACHINE SIDC 3000 |
 |
|
 |
|
Features
• U-basket enables easier separation of fabric and fluid. Stabilized sorting, transmission and low liquid ratio suits this device for low tension operation of high density fibers.
• Liquid Ratio ; 1:3~8
• Applicable for numerous fibers including cottons, chemical fibers, T/C, union fibers, woven fibric made of new synthetic fibers, spandex and knits. |
|
|
| |
  |
|
| Model |
DC 3100 |
DC 3200 |
DC 3300 |
DC 3400 |
| Loading Capacity (kg) |
100~150 |
200~300 |
300~450 |
400~600 |
| Liquid Quantity (liters) |
450~900 |
900~1,800 |
1,350~2,700 |
1,800~3,600 |
| Electric Power (kW) |
15.5 |
28 |
38.2 |
54.7 |
| Installed width (mm) |
2,900 |
3,950 |
5,150 |
6,400 |
| Length (mm) |
5,300 |
5,300 |
5,300 |
5,300 |
| Height (mm) |
3,500 |
3,500 |
3,500 |
3,500 |
| Max. operating temperature |
140℃ |
|
|
|
| Heating rate (Saturate Steam 0.7㎫) |
Approx. 20min (from20℃ to140℃) |
|
|
| Cooling rate (Cooling Water 0.1㎫, 15℃) |
Approx. 15min (fom140℃ to 80℃) |
|
|
|
|
| |
 |
 |
|
